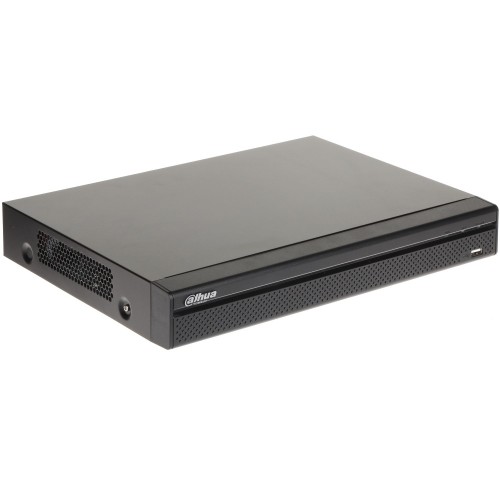

DAHUA XVR 1B08-I 08 CHANNEL

Brand

Dahua

Model

Dahua XVR1B08-I

Type

08 Channel (XVR)

Video Compression/Format

AI Coding/H.265+/H.265/H.264+/H.264

Video Output (VGA)

1920 × 1080, 1280 × 1024, 1280 × 720

Video Output (HDMI)

1920 × 1080, 1280 × 1024, 1280 × 720

Video Recording Res.

1080N, 720p, 960H, D1. CIF

Max. Video Recording Res.

1920 x 1080

Video Bit Rate

32kbps - 4096 kbps per channel

IP Video Input

8 channel up to 6MP

Audio Input Channel (RCA)

1 Channel, RCA

Audio Compression

G.711A, G.711U, PCM

Audio Output Channel

1 channel, RCA

Two way Audio

1 channel Input, 1 channel Output, RCA

Audio Bit Rate

64Kbps Per Channel

Dual Stream Support

Yes

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

6TB

Max. Storage Support

6TB

eSATA

No

Network Interface (RJ45)

1 RJ-45 10/100 Mbps Ethernet

USB Port

2 x USB 2.0

Main Processor

Embedded Processor

CVBS Input

PAL/NTSC

Incoming Bandwidth

40 Mbps

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection

Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Backup Storage

USB Device/Network

Chassis

Cooper 1U

Operating System.

Embedded linux

Power Supply

DC 12V/1.5 A

Power Consumption

<7W

Max. Power

DC 12V/1.5 A

Dimensions

198 x 202.9 x 41.5mm

Weight (Kg)

0.62 kg

Smart Phone Supported

iPhone, iPad, Android

Feature

CE, CE-LVD, EN 60950-1/IEC 60950-1, CE-EMC, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 Certifications

Others

Max. User Access: 128 users, AI Search: Search by target classification (Human, Vehicle), HDCVI Camera Input: (1080p@25/30fps, 720p@25/30fps), AHD Camera Input: (1080p@ 25/30fps, 720p@ 25/30fps), TVI Camera Input: (1080p@25/30 fps, 720p@25/30fps), Audio Sample Rate: (8 KHz, 16 bit per channel), Multi-screen Display: (When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16), Playback Function: (Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom), Operating Conditions: -10 to +45 degree C, Storage Conditions: -20 to +70 degree C
