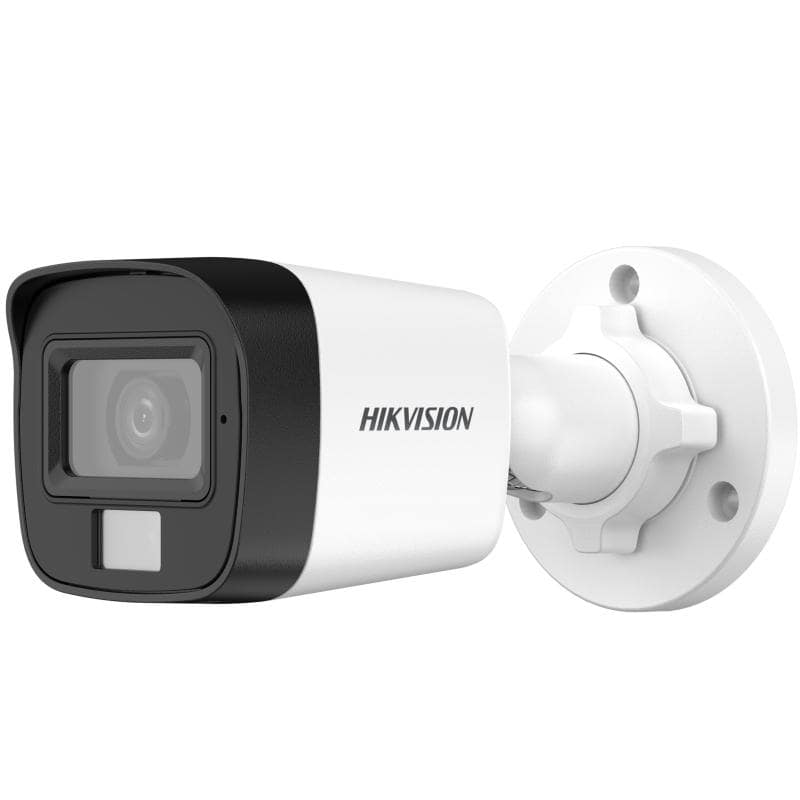

Hikvision DS-2CE16D0T-LPFS (3.6mm) (2.0MP) Mini Bullet

General

Brand

Hikvision

Model

Hikvision DS-2CE16D0T-LPFS

Usage

Outdoor

Type

CC Camera

Camera

Mega Pixels

2.0MP

Resolutions.

1920 x 1080

Max. Camera Resolution

1920 x 1080

Signal System

PAL/NTSC

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Sensor Type.

2 MP CMOS

Day & Night

ICR/ IR/White Light

Night Vision

Yes

Lens

Field of View

Horizontal FOV: 78 Degree, vertical FOV: 42 Degree, diagonal FOV: 92 Degree

Lens Type

3.6mm

Lens Mount

M12

Lens Adjustment Range

Pan: 0 to 360 Degree, Tilt: 0 to 180 Degree, Rotation: 0 to 360 Degree


WDR (Wide Dynamic Range)

Digital WDR

AGC

Yes

Capture Distance

Unmentioned

Technical Info

Camera Type

Fixed

Video Output

Switchable TVI/AHD/CVI/CVBS

Audio Type

Built-in mic

Weather Proof

IP67

IR Range

25 Meter

Communication

HIKVISION-C

Ingress Protection

IP67

Physical Description

Form-Factor

Mini Bullet

Body Color

White

Body Material

Plastic

Dimensions

138.8 x 60.9 x 57.9mm

Weight (Kg)

0.155 Kg

Power

Power Supply

12 VDC + - 25%

Power Consumption

Max. 3.3 W

Warranty

Warranty Details

1 year

Additional Info

Night Vision Mode

Color

Audio

Only Mic

Feature

One port for four switchable signals (TVI/AHD/CVI/CVBS), High quality audio with audio over coaxial cable, built-in mic.

Others

Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR. Supplement Light Type: White Light,IR. Supplement Light Range: White Light : Up to 20 m. Image Settings: Brightness, Sharpness, Smart IR. Frame Rate: TVI: 1080P @ 30 fps, 1080P @ 25 fps, AHD: 1080P @ 30 fps, 1080P @ 25 fps, CVI: 1080P @ 30 fps, 1080P @ 25 fps, CVBS: PAL/NTSC. Image Enhancement: Yes, White Balance: Auto/Manual

Specialty

High quality imaging with 2 MP, 1920 x 1080 resolution, Up to 25 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for four switchable signals (TVI/AHD/CVI/CVBS, High quality audio with audio over coaxial cable, built-in mic, Water and dust resistant (IP67). Video Editor Mood: XVR/ DVR
