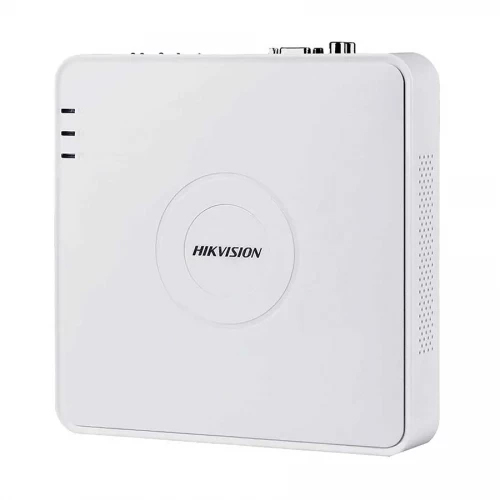

Hikvision DS-7I04HGHI-F1/K1 4-CH

Brand

Hikvision

Model

Hikvision DS-7116HGHI-F1

Type

TURBO HD DVR

Video Input Channel (BNC)

16-channel, BNC Interface (1.0Vp-p, 75 omega)

Video Compression/Format

H.264+/H.264

Video Output (VGA)

1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.

1080p, 720p, WD1, 4CIF, VGA, CIF

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps to 4 Mbps

IP Video Input

Up to 16-ch Up to 1080p resolution Support H.264+/H.264 IP cameras

Analog & HD-TVI Video Input

16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Audio Input Channel (RCA)

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Compression

G.711u

Audio Output Channel

1-channel, RCA (Linear, 1K omega)

Two way Audio

Reuse the first audio input

Audio Bit Rate

64 kbps

Frame Rate

1/16 fps - Real time frame rate

Stream Type

Video/Video & Audio

Dual Stream Support

Yes

Synchronous Playback

16-channel

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Number HDD Interface (SATA)

1 SATA

Max HDD Support (GB,TB)

Up to 6TB capacity for each disk

Max. Storage Support

6TB

Network Interface (RJ45)

1, RJ45 10M/100M self-adaptive Ethernet interface

Serial Interface

No

USB Port

2 x USB2.0

Remote Connections

128

CVBS Input

Yes

Power Supply

12VDC

Power Consumption

<-20 W

Dimensions

285 x 210 x 45mm

Weight (Kg)

<-1.2 kg

Feature

Support H.264+/H.264 video compression, Support HDTVI/AHD/CVI/CVBS/IP video input, Up to 4-ch 960p IP camera input for DS-7104HGHI-F1, up to 8/16-ch 1080p IP camera input for DS-7108/7116HGHI-F1, Max. 1200 m for 720p HDTVI signal

Others

Working temperature: -10 degree C to +55 degree C, Working humidity: 10% to 90%

Part No

DS-7116HGHI-F1
